I am always looking for any information or parts for 1914 Apperson Jackrabbit.

Bearing insert fabrication for main bearings. The engine will now have inserted main bearing. Babbitt does not adhere to aluminum.

Return to rebuild page
Click on picture for large view. Close window - tab to return.

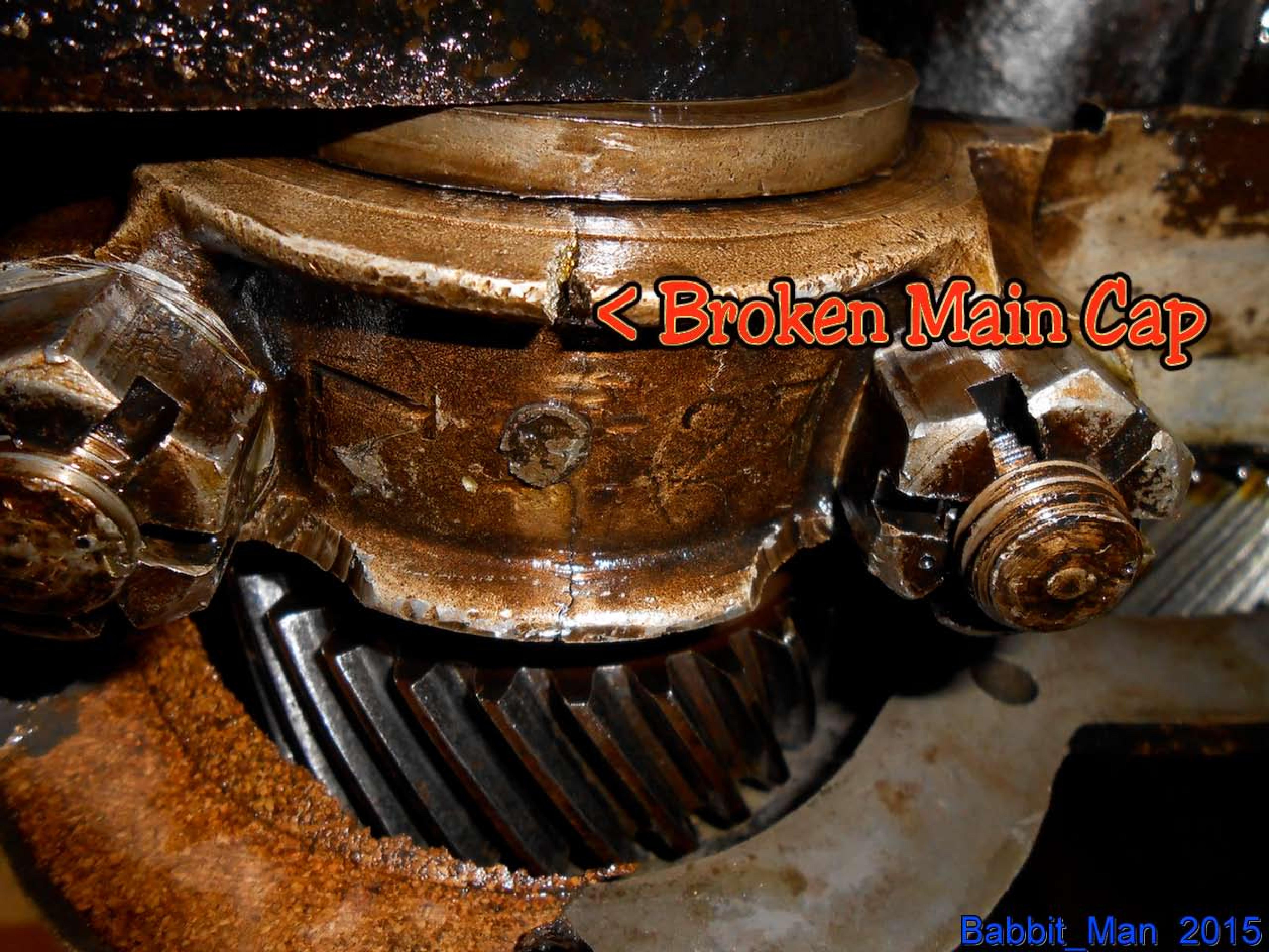

  • Number one main bearing cap Number one main bearing cap Number one main cap was broken in half.
  • This will be the new main bearing cap This will be the new main bearing cap New main bearing cap before machining.

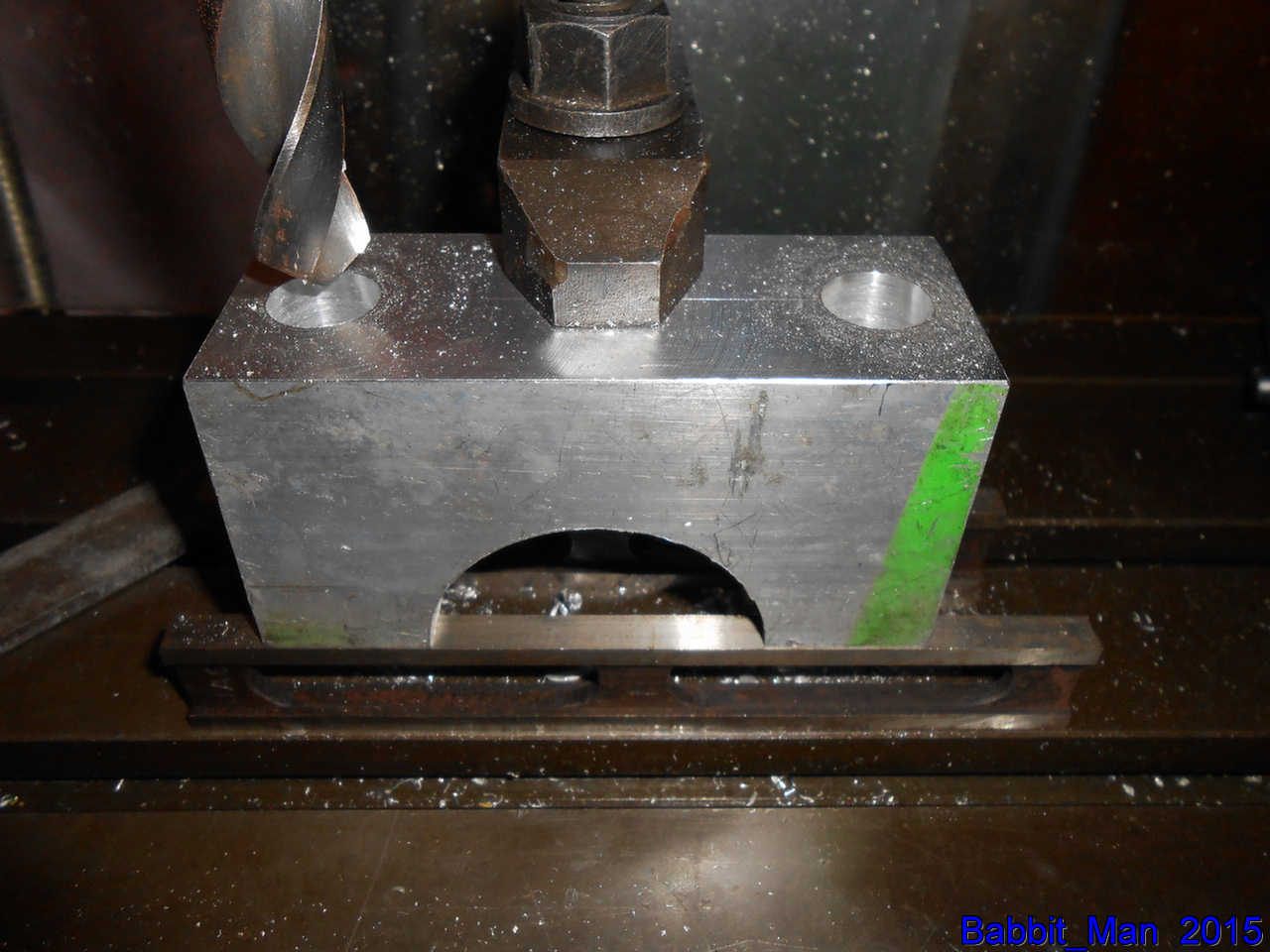

  • New main bearing cap New main bearing cap New main bearing cap being machined.

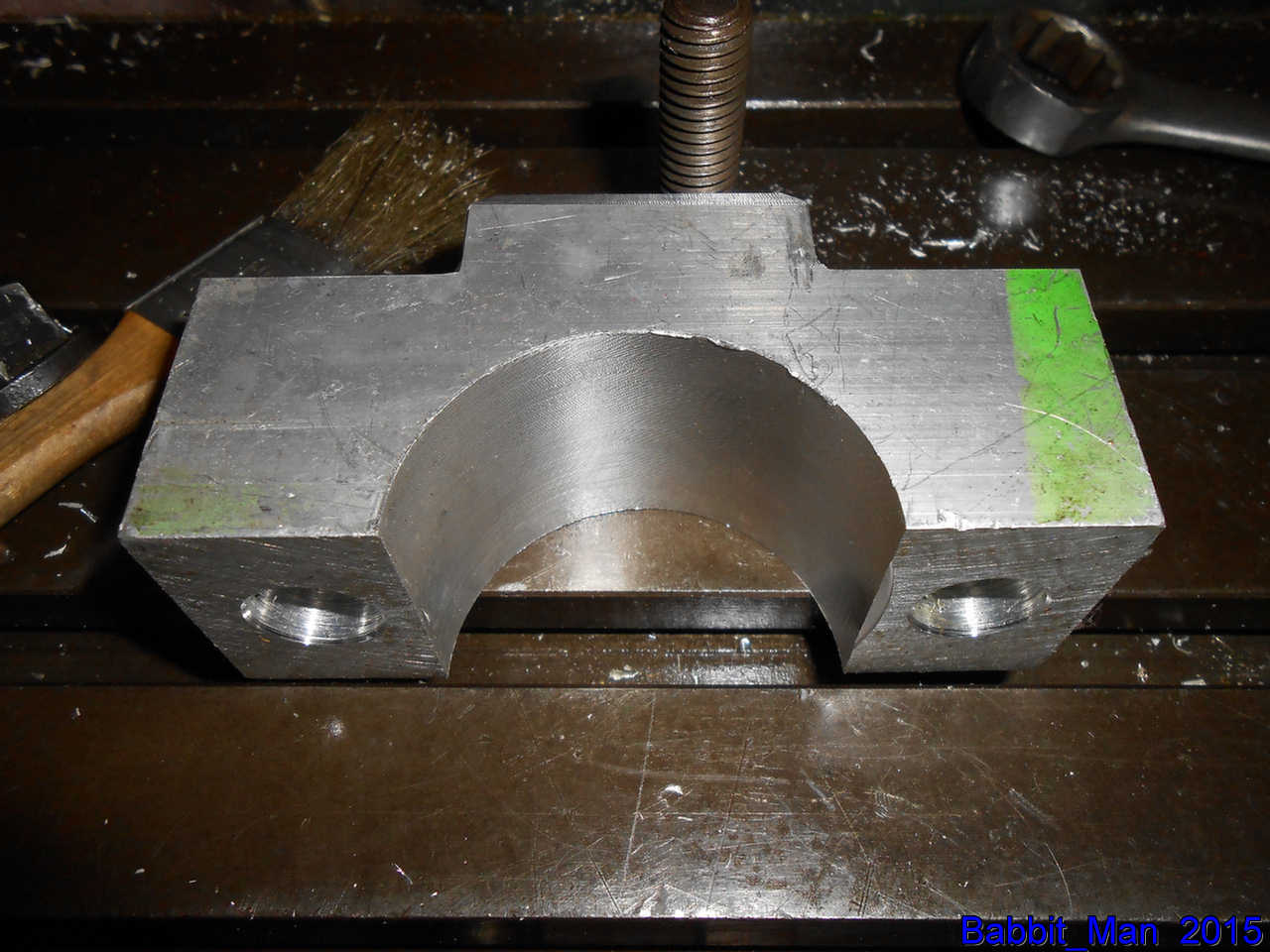

  • New main bearing cap finished New main bearing cap finished New main bearing cap machine work completed.

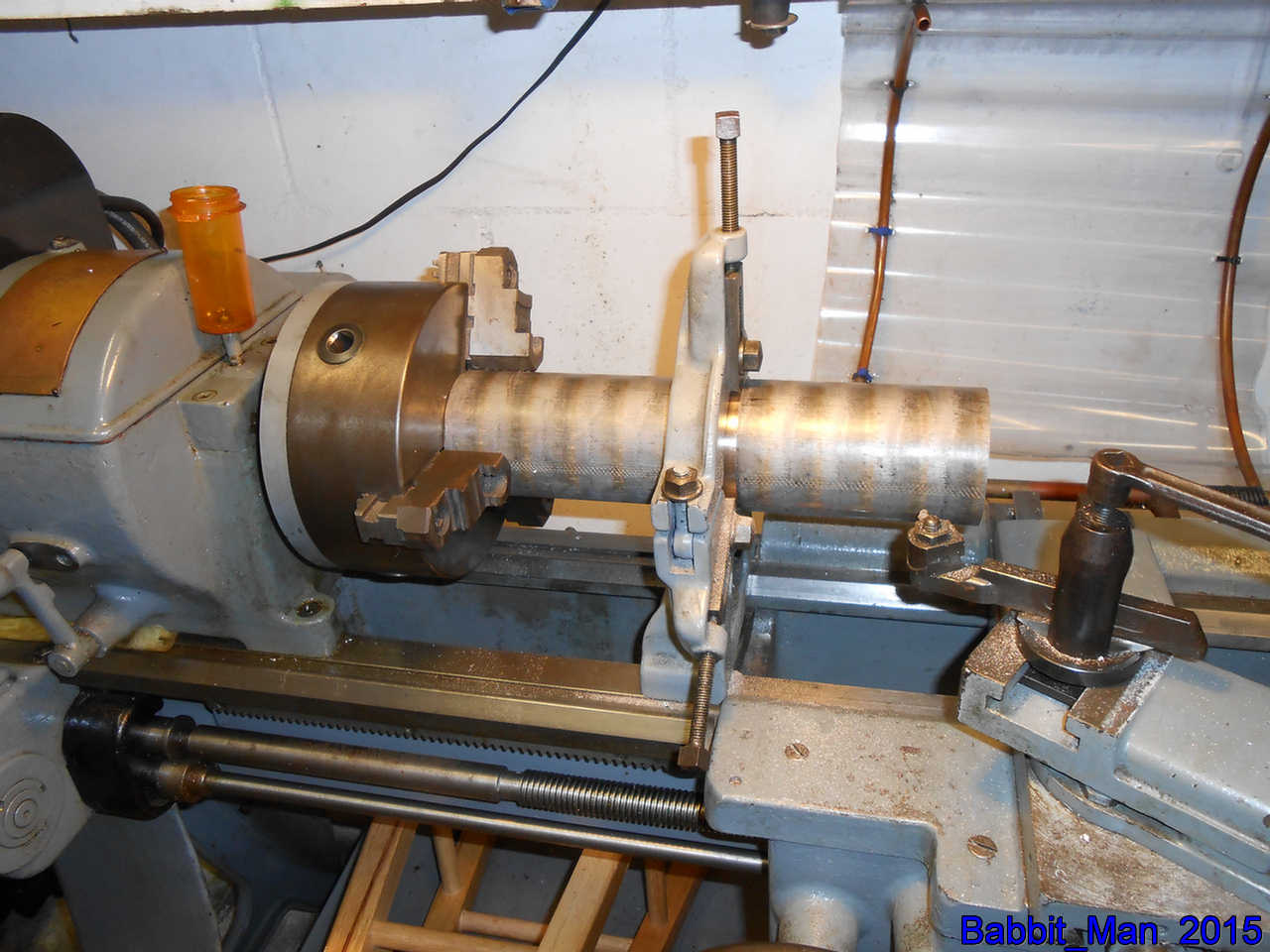

  • Solid brass bar for main bearing inserts Solid brass bar for main bearing inserts All main bearing inserts were made from a solid brass bar.

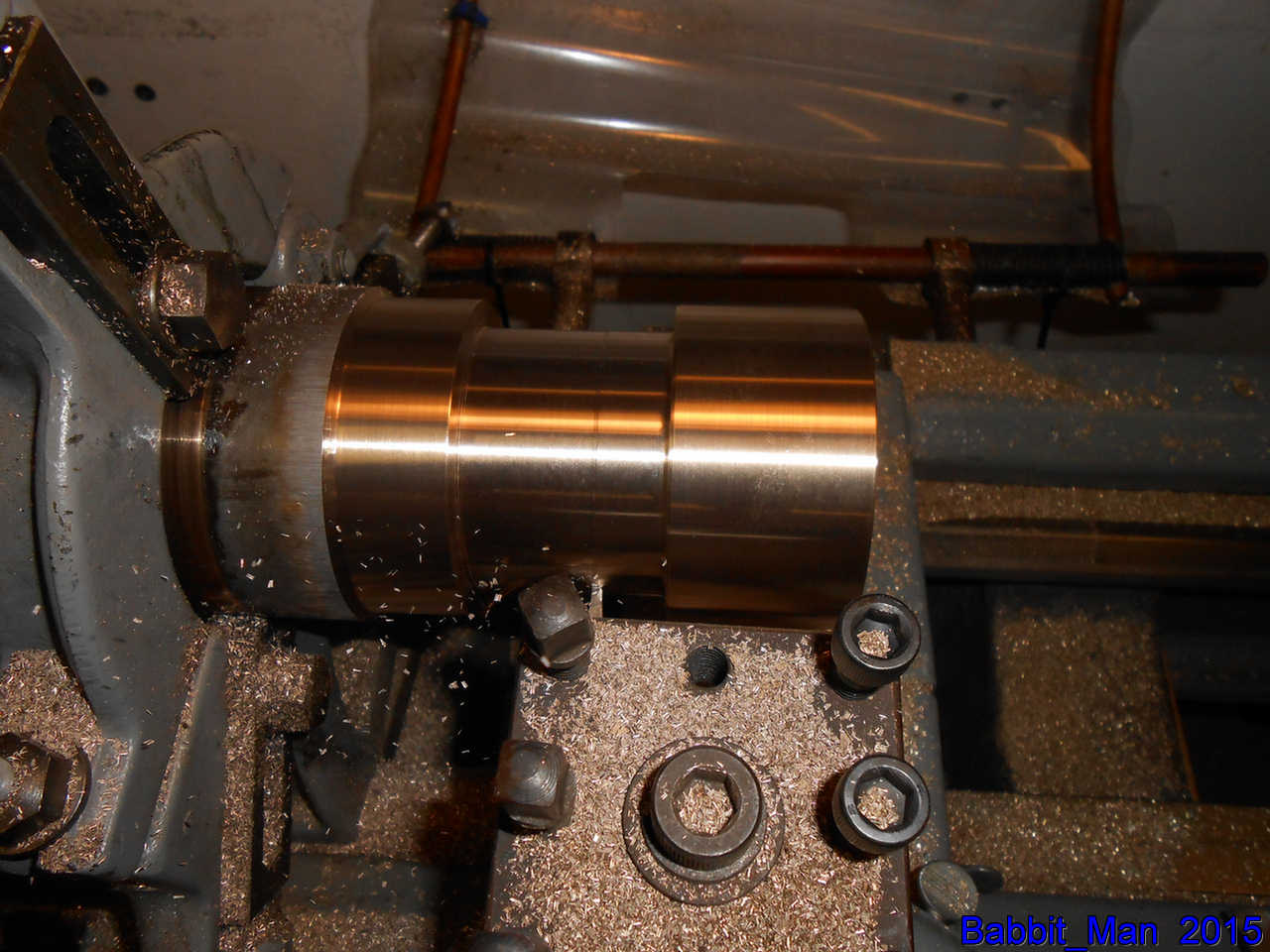

  • Rear main bearing insert Rear main bearing insert This will be the rear main beraing.
  • Center bearing inserts Center bearing inserts Two of the center main bearing inserts.

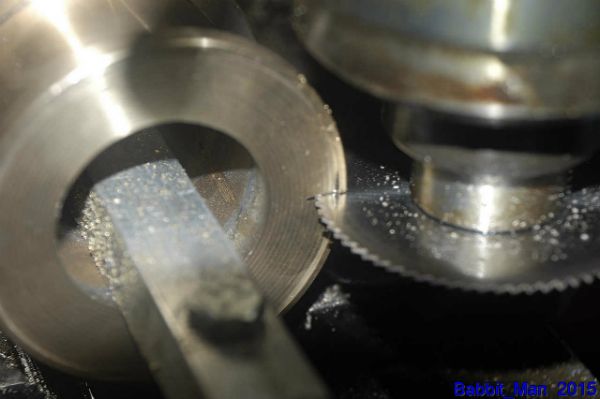

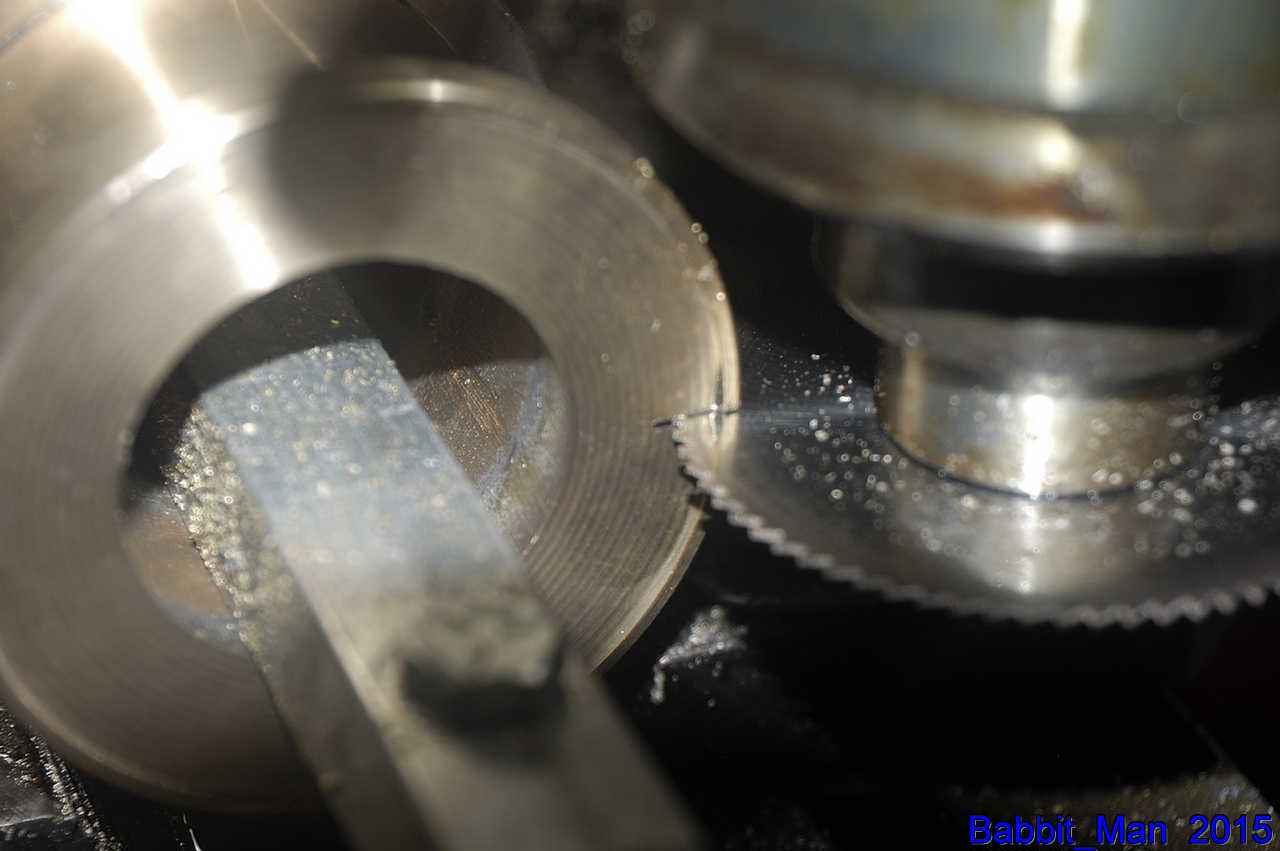

  • Spliting the inserts. Spliting the inserts. The spliting of the inserts.

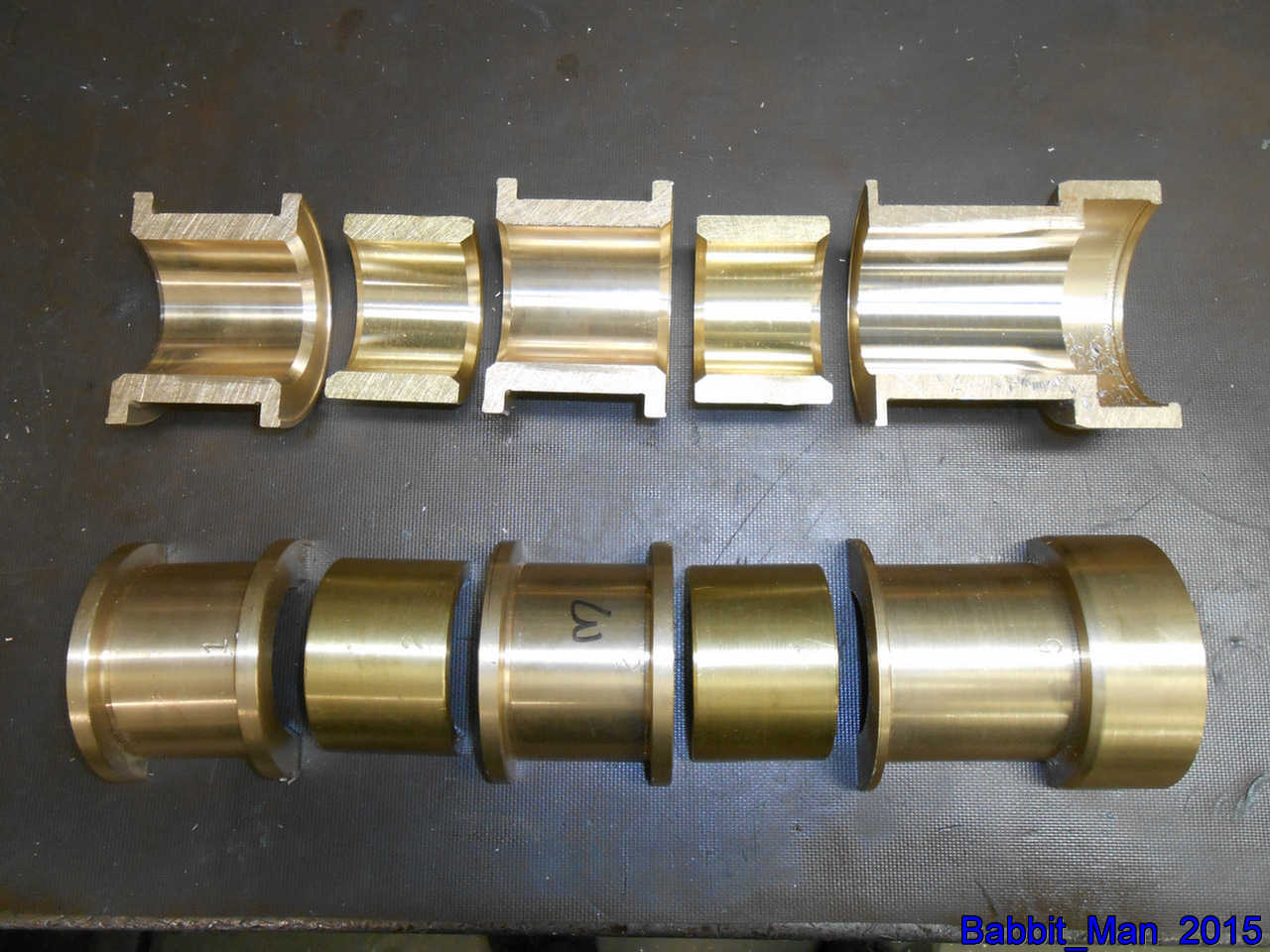

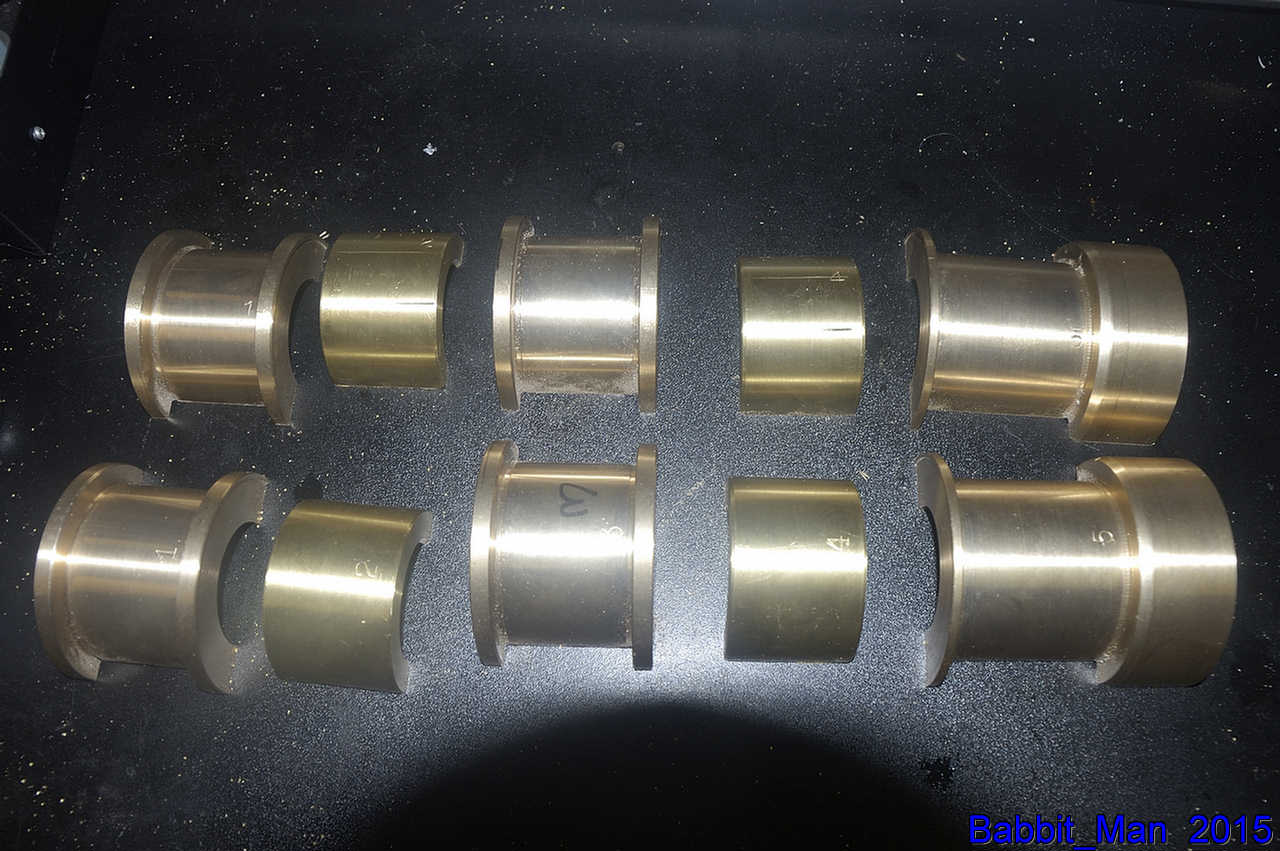

  • Completed inserts. Completed inserts. The five bearing inserts completed and ready for babbitt.
  • Completed inserts. Completed inserts. The five bearing inserts completed and ready for babbitt.

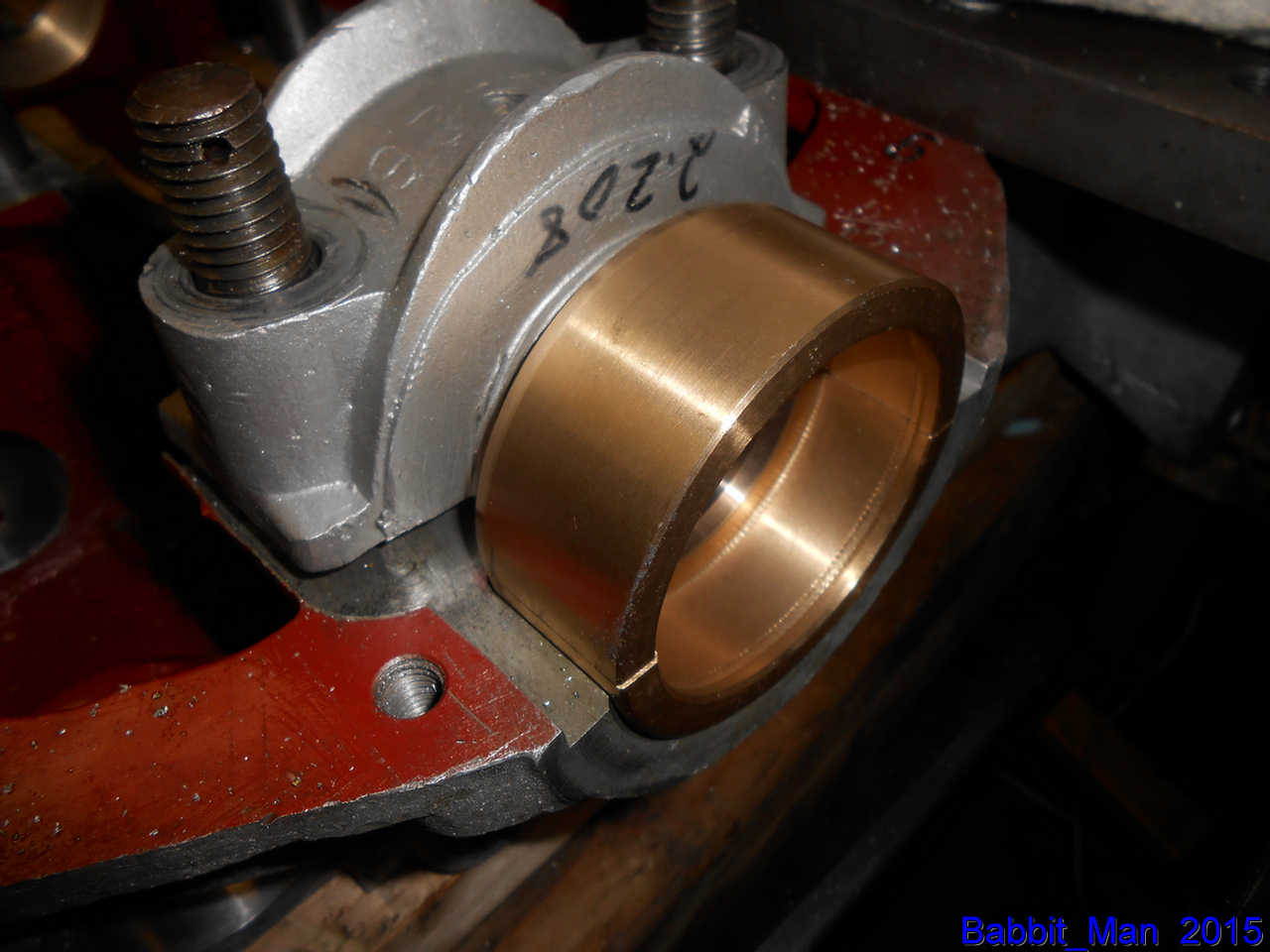

  • New number one cap New number one cap Insert in the new number one cap.

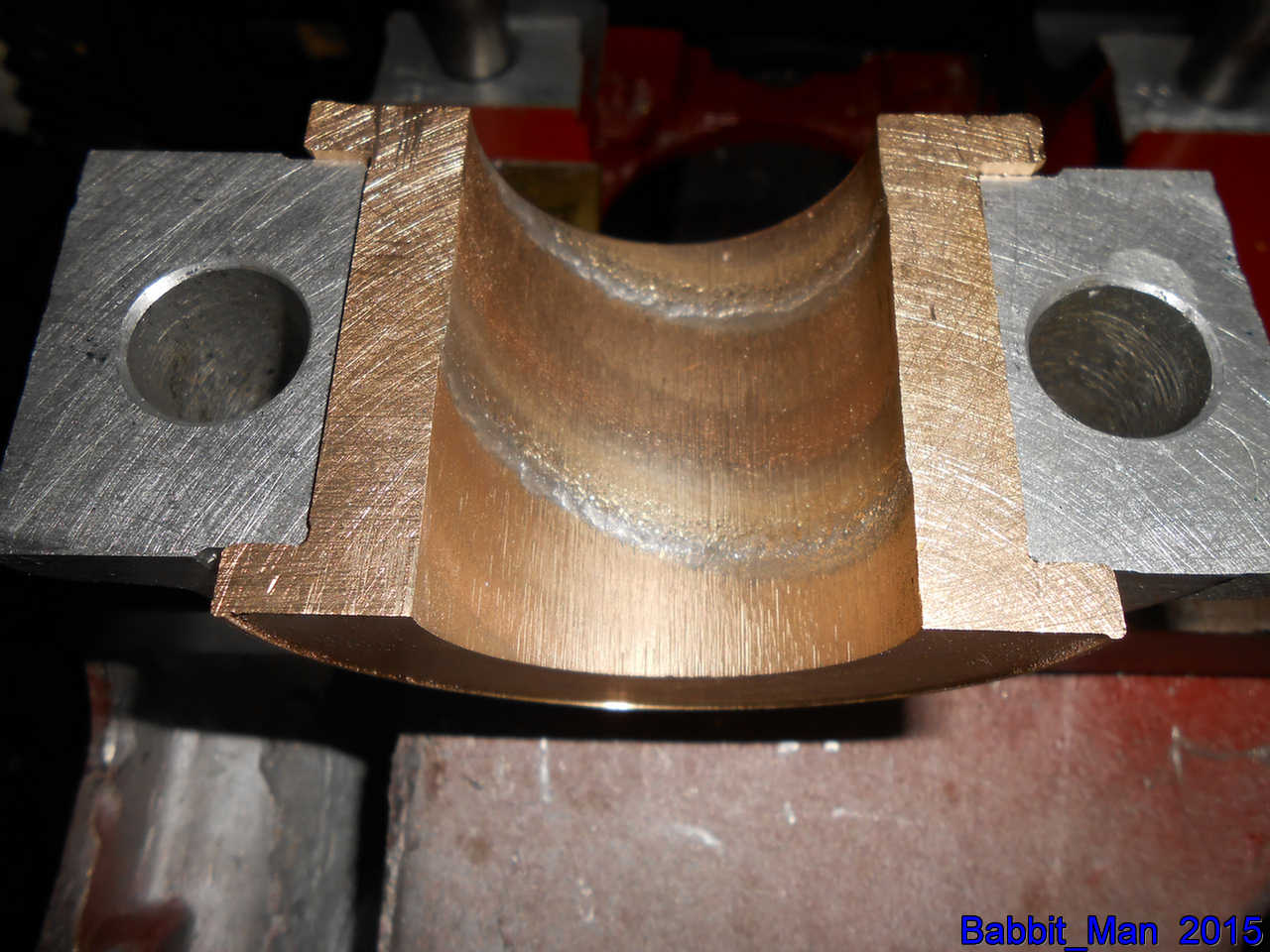

  • Rear main Rear main Rear main with new insert.

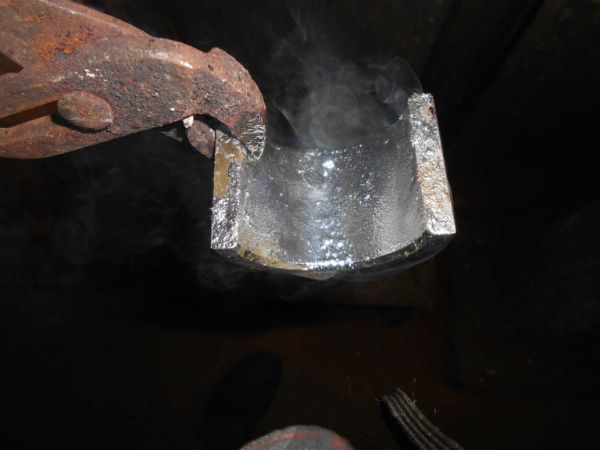

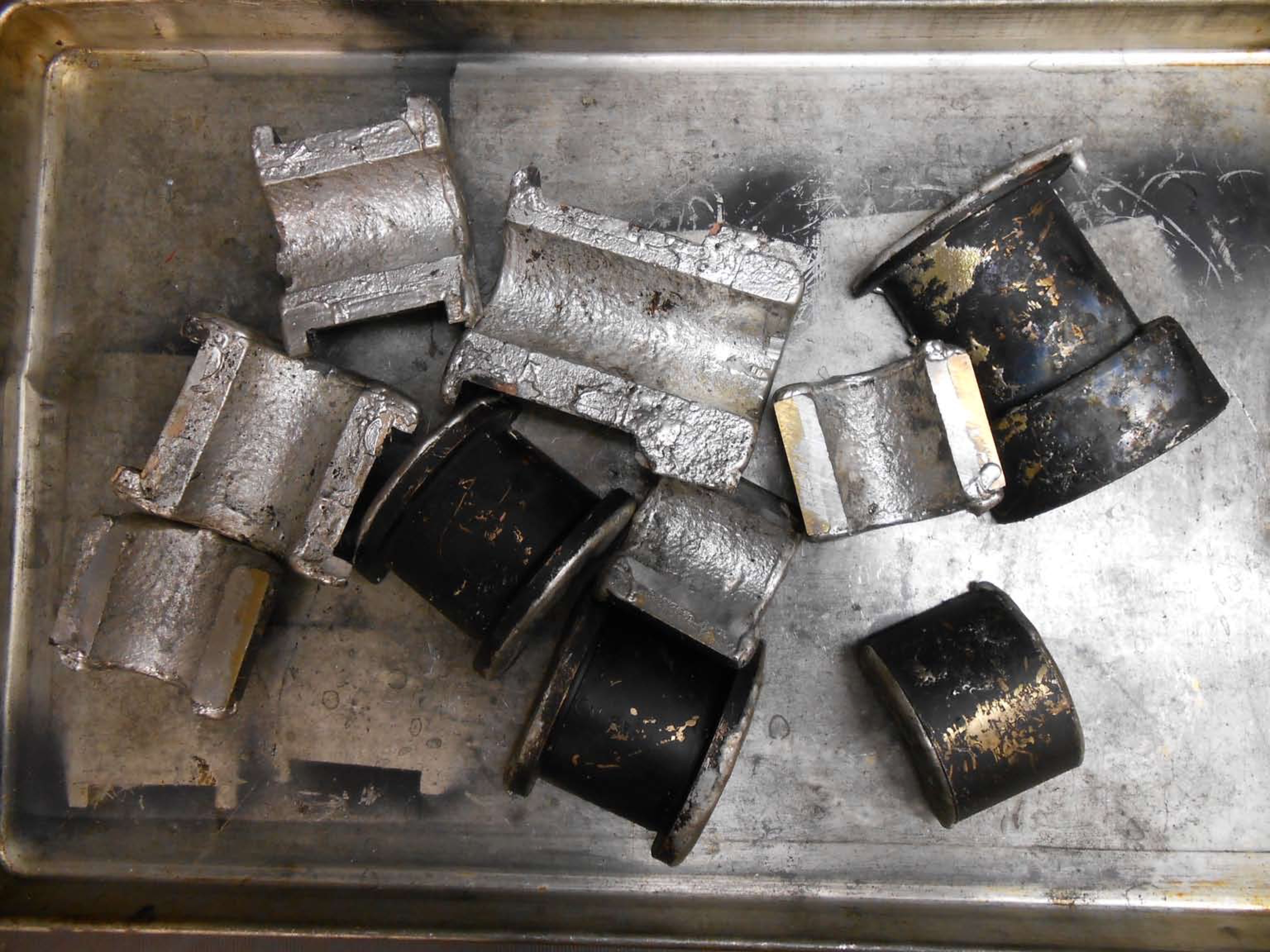

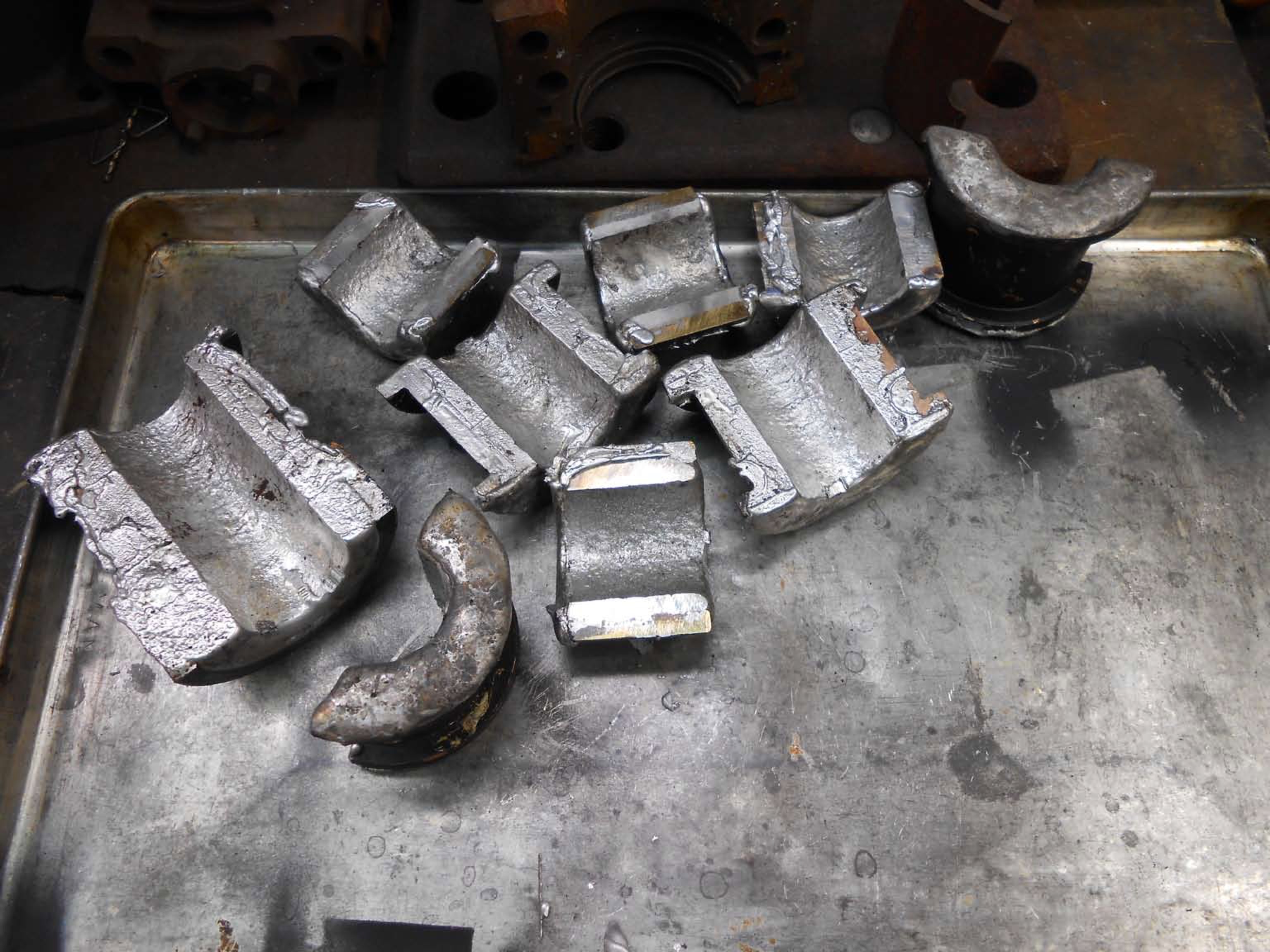

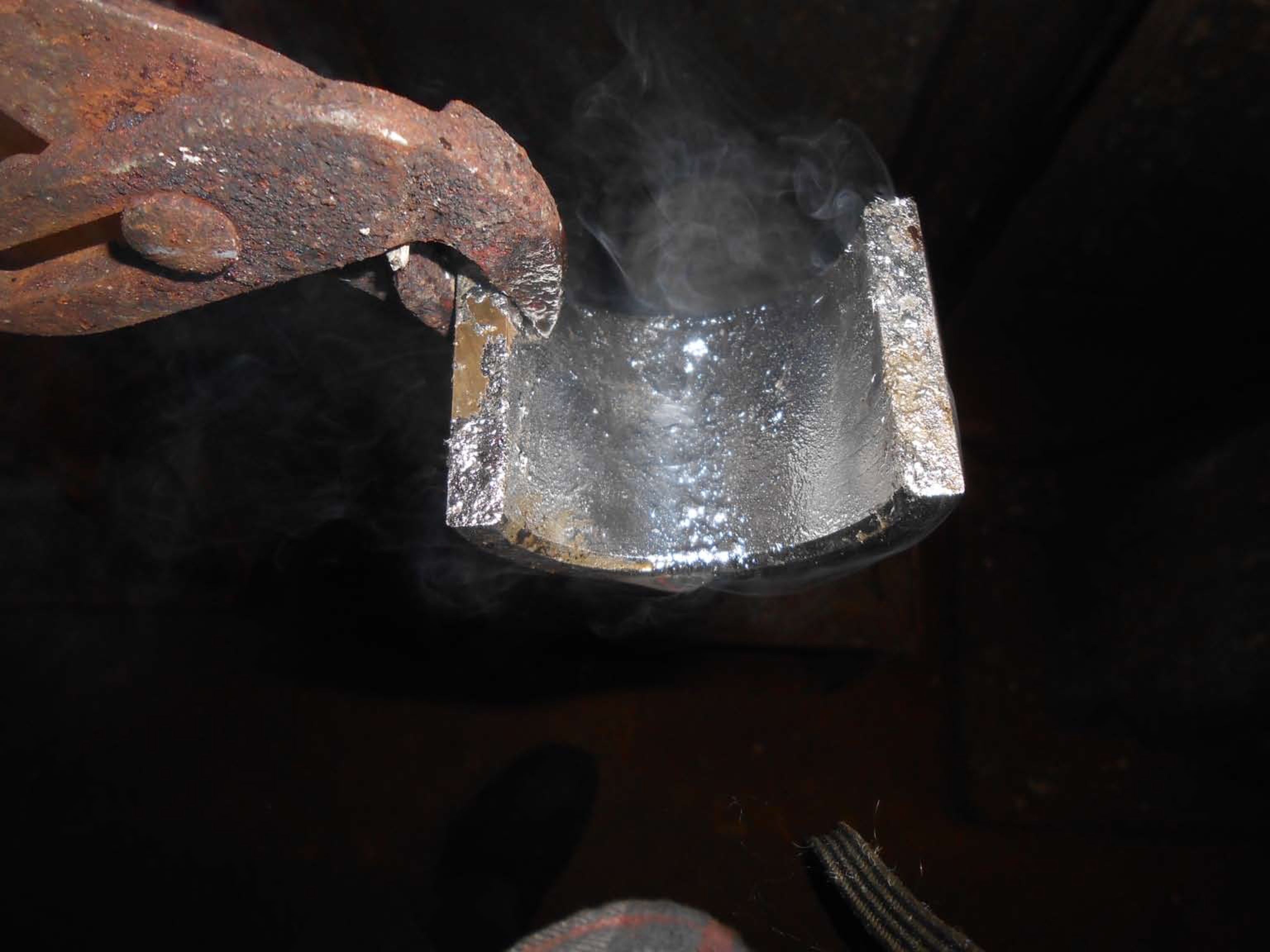

  • Babbitt Babbitt Insert with new babbitt.

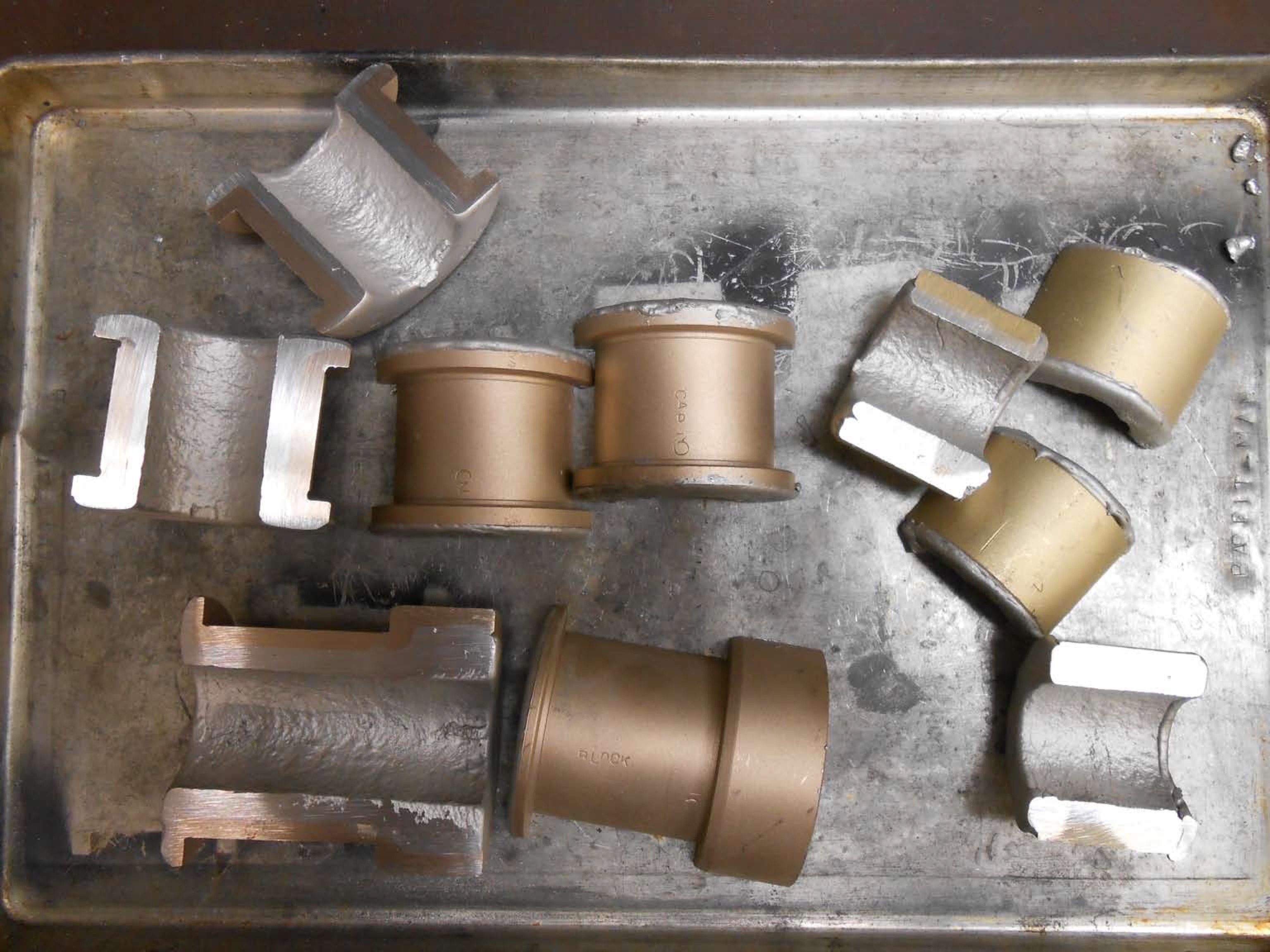

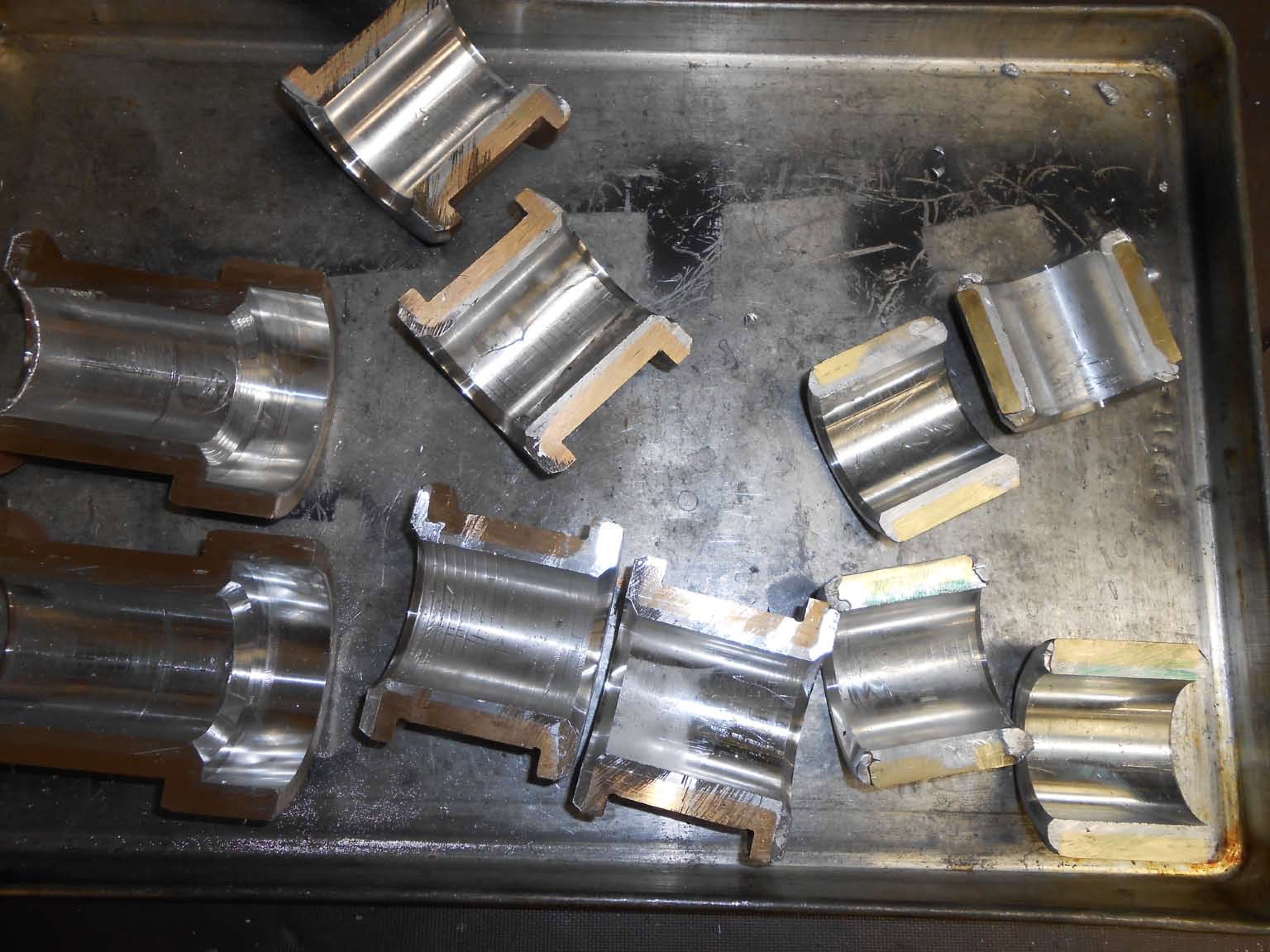

  • New babbitt New babbitt All inserts with new babbitt before machine work.
  • New babbitt New babbitt All inserts with new babbitt before machine work.

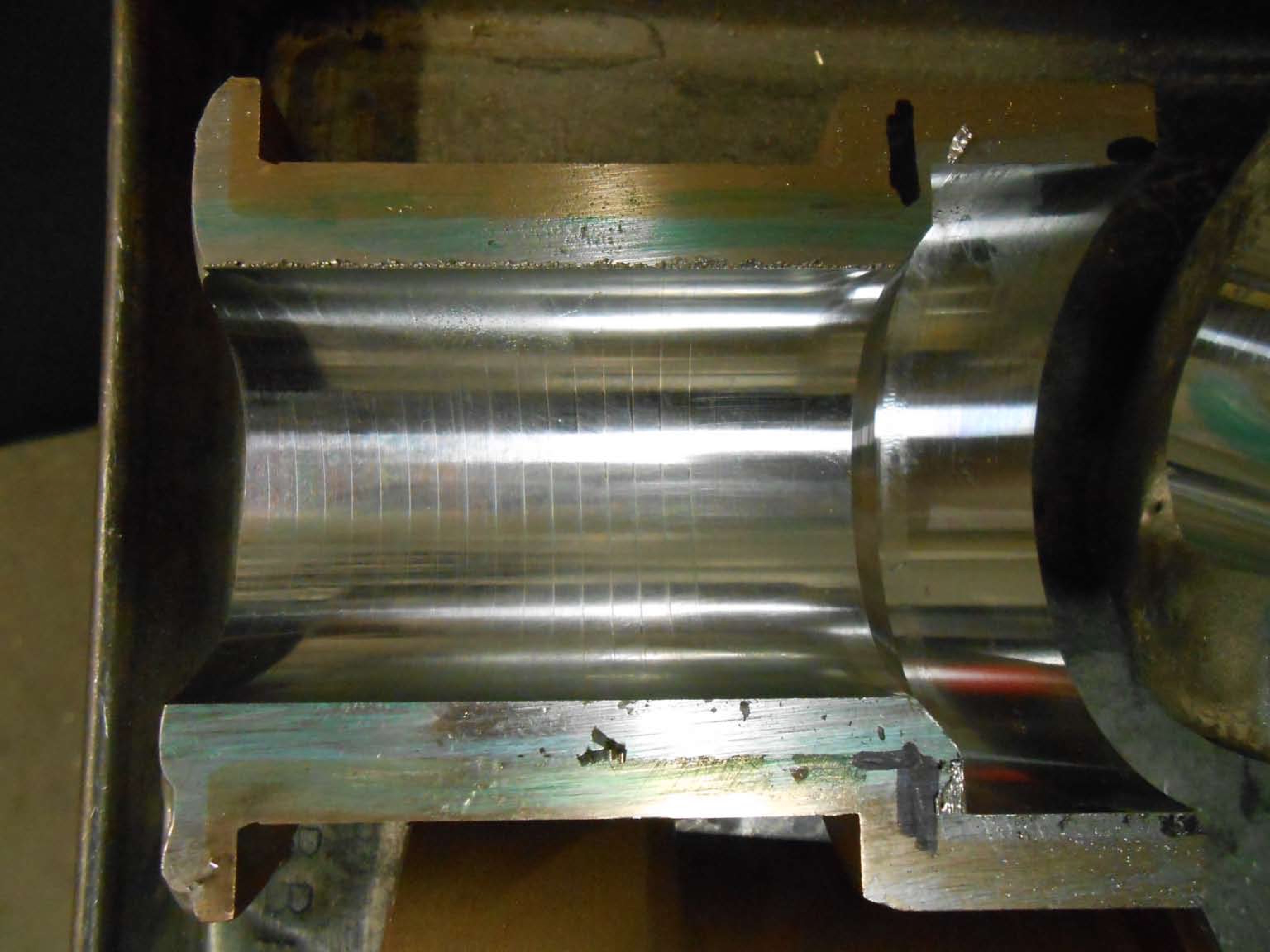

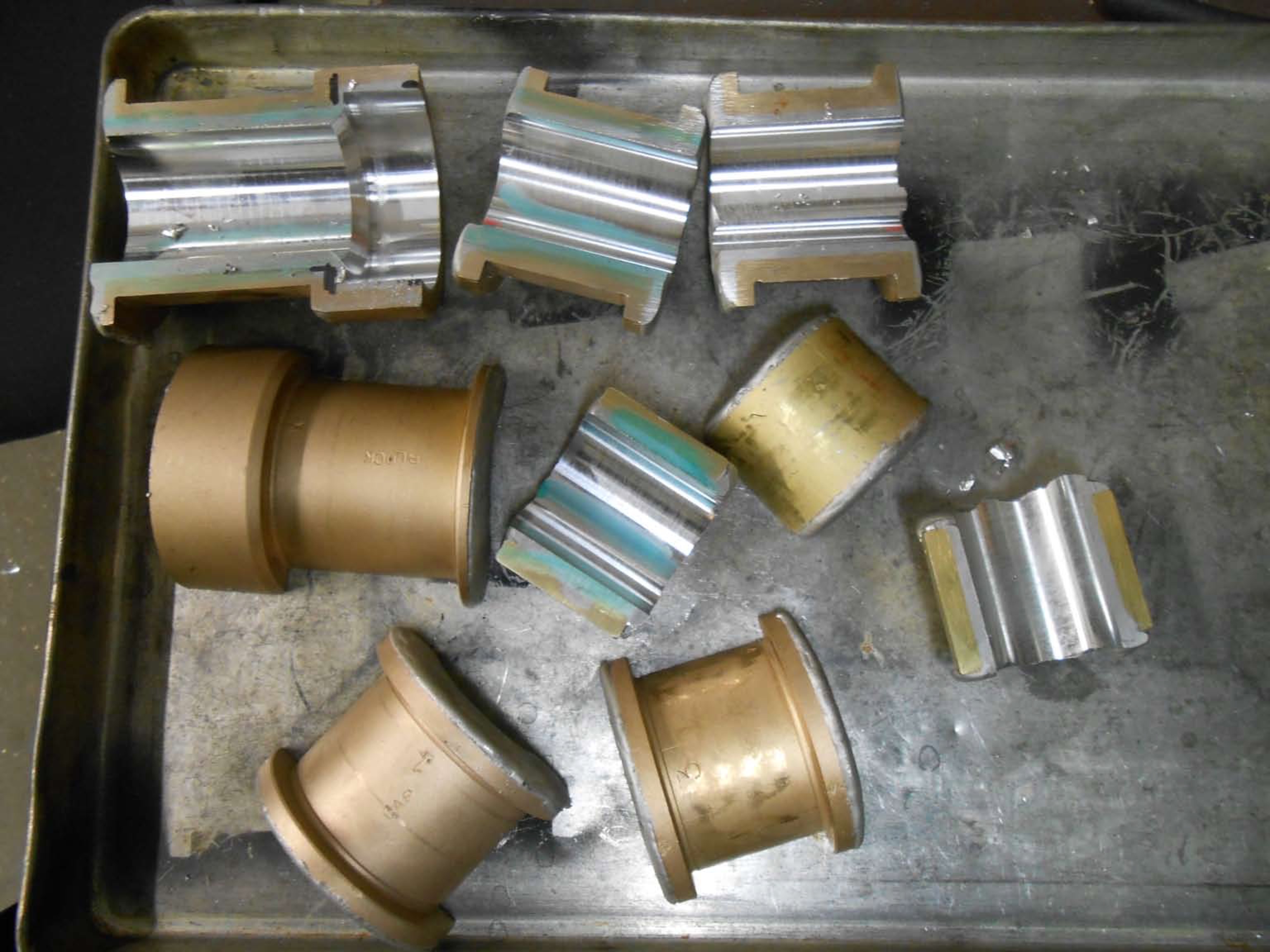

  • New babbitt New babbitt All inserts with new babbitt after machine work.

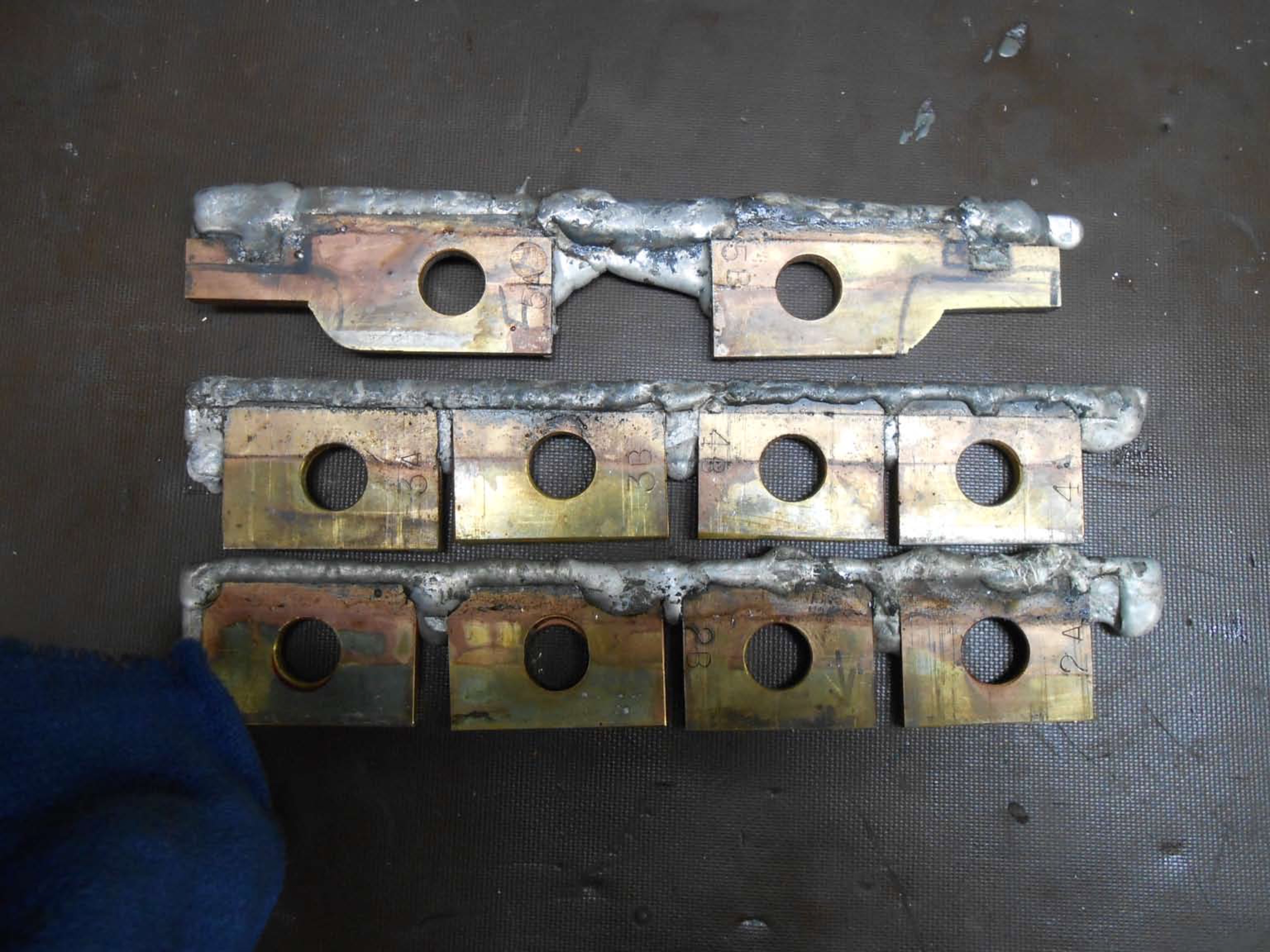

  • Shims Shims New shims.

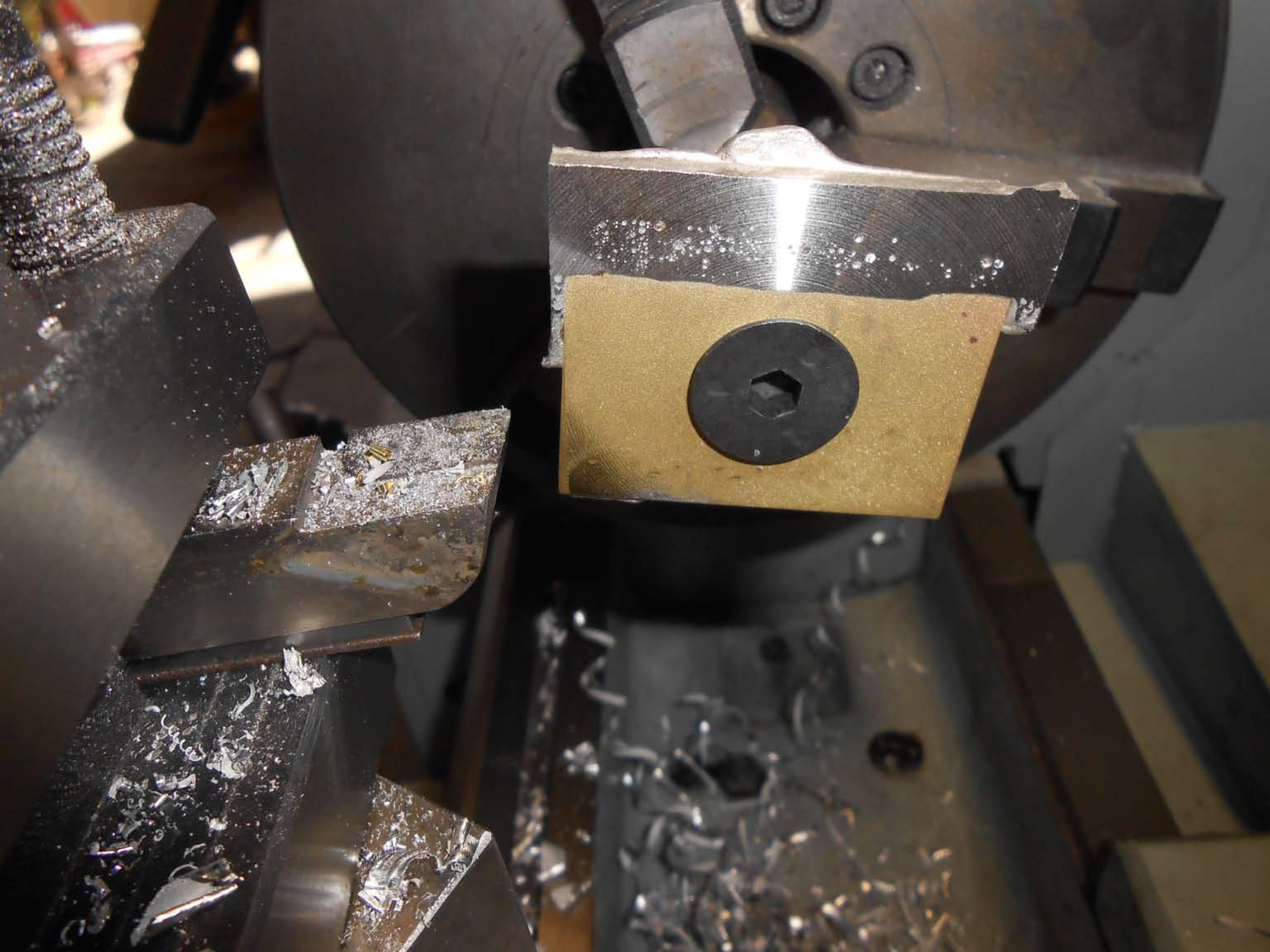

  • Shim Shim Machine work on shim.
  • New babbitt New babbitt All inserts with new babbitt after machine work.

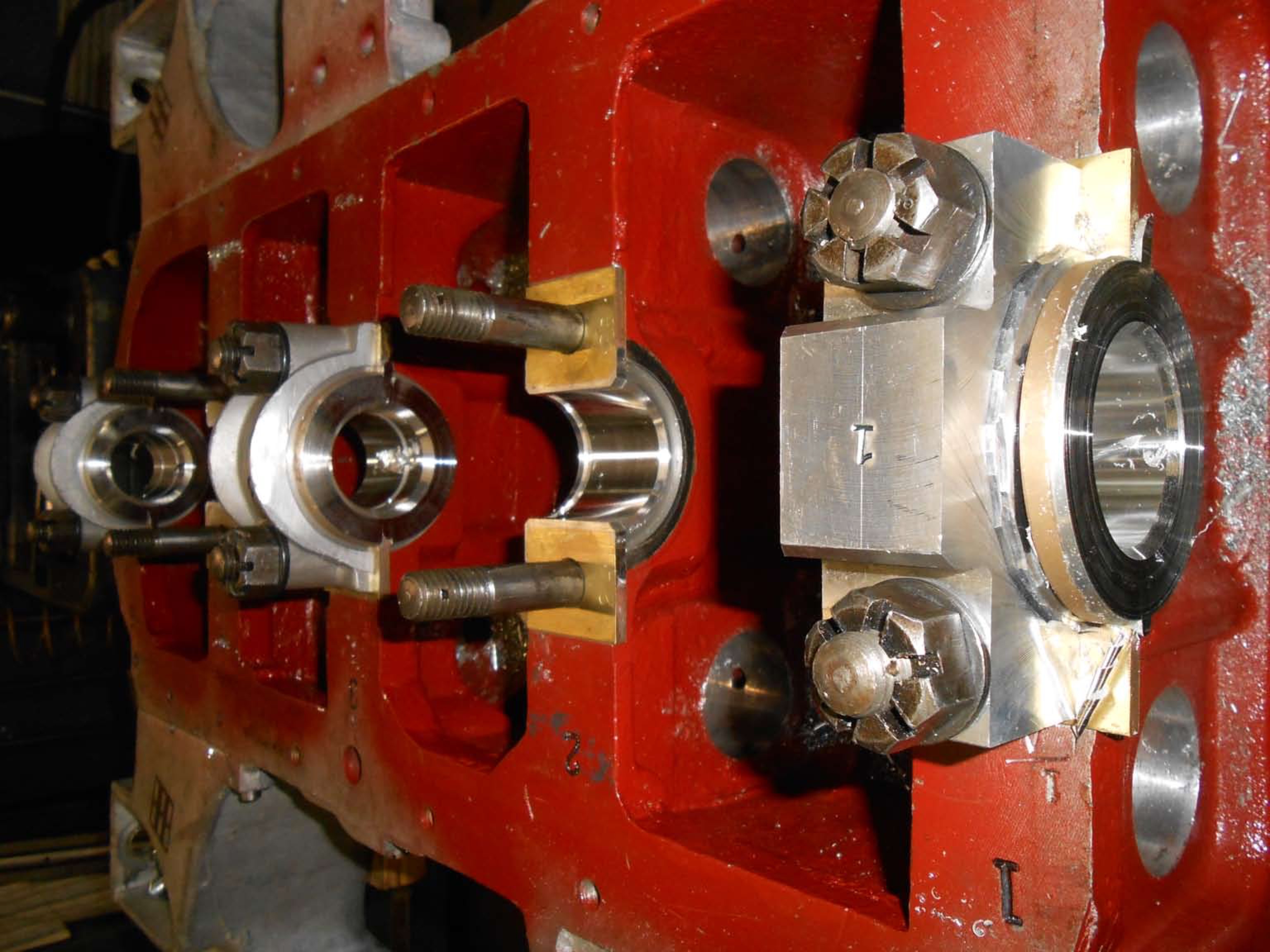

  • Rear main Rear main Rear main after line boring.

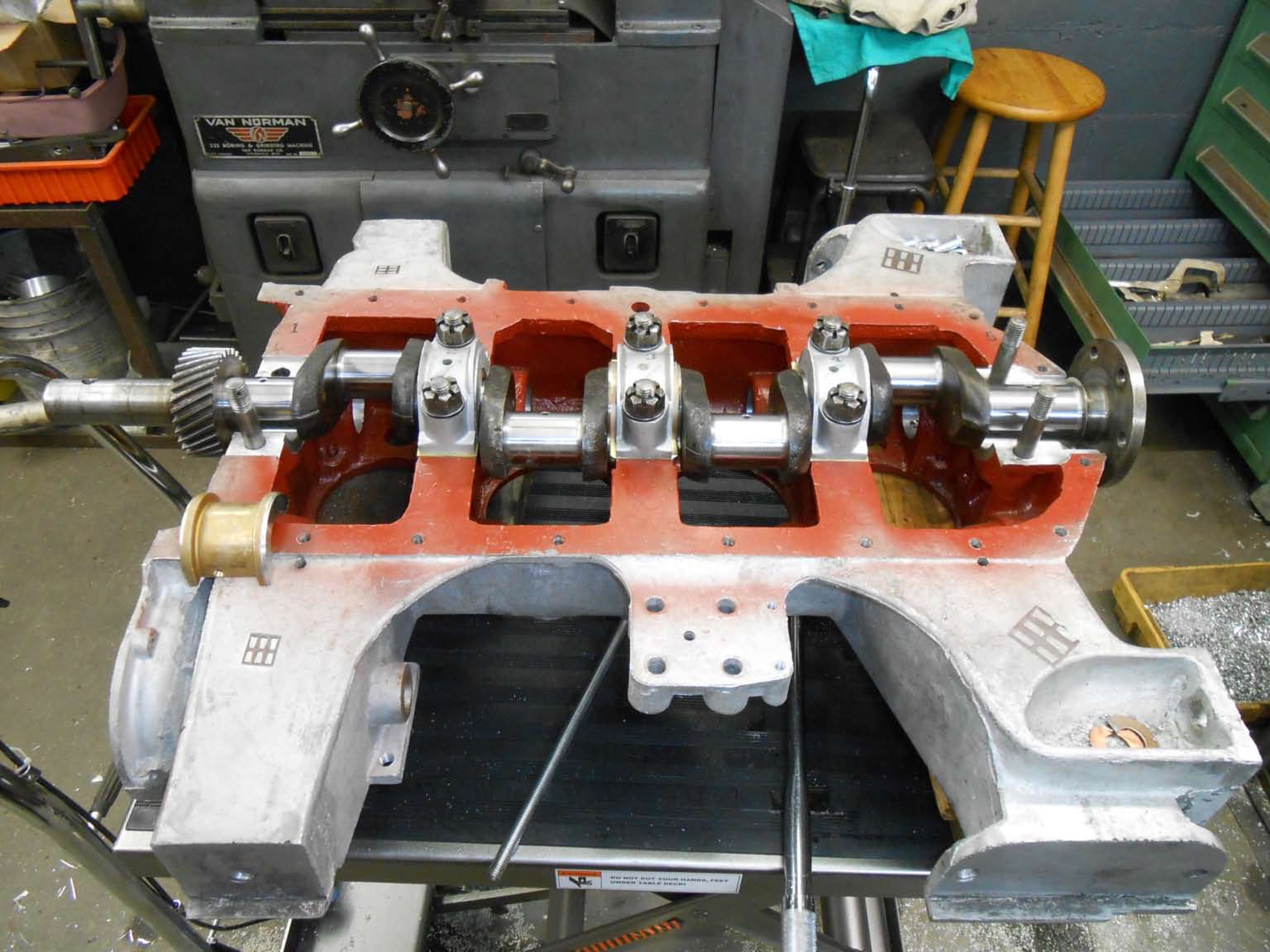

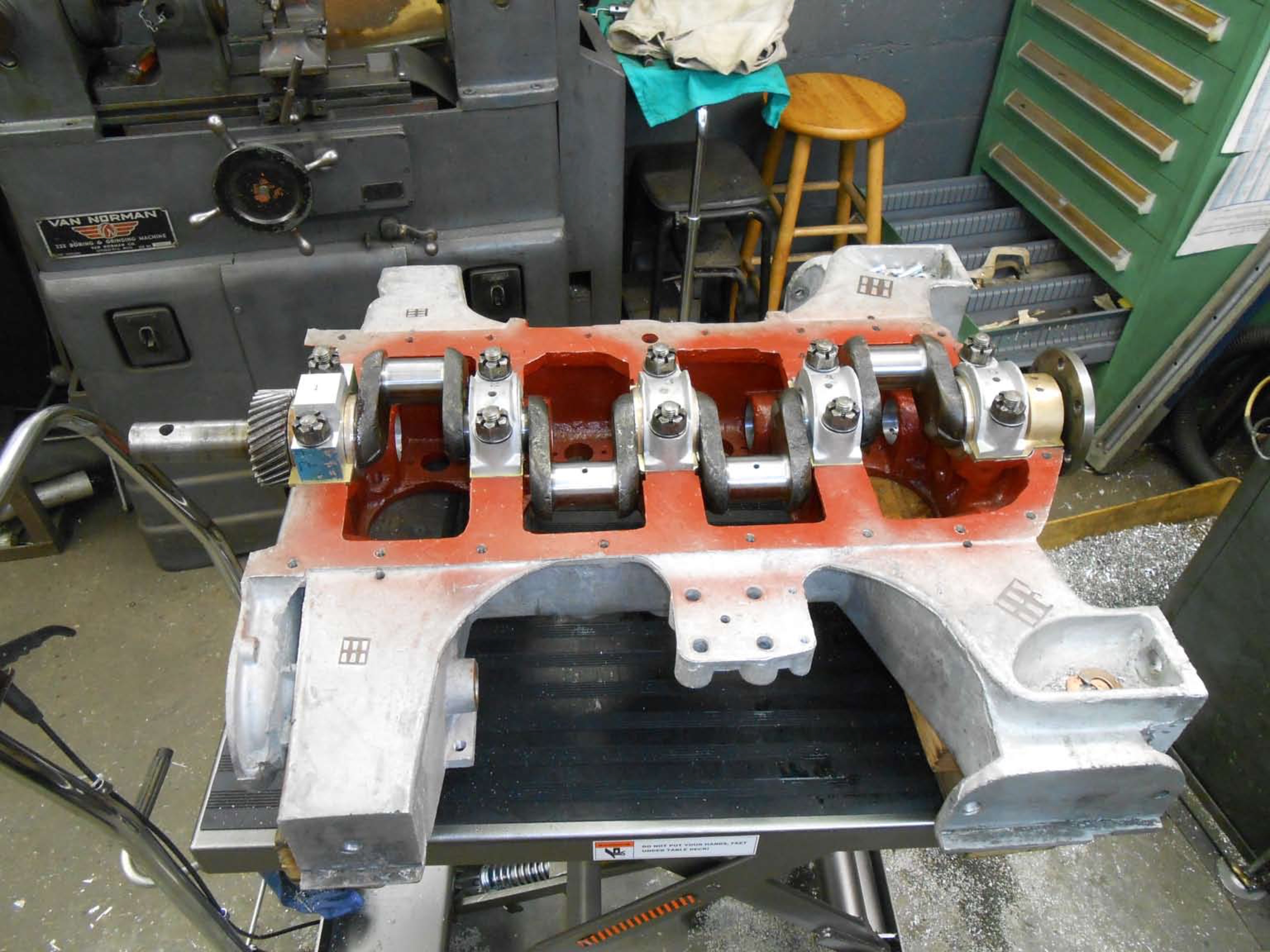

  • Main bearings Main bearings More machine work done.

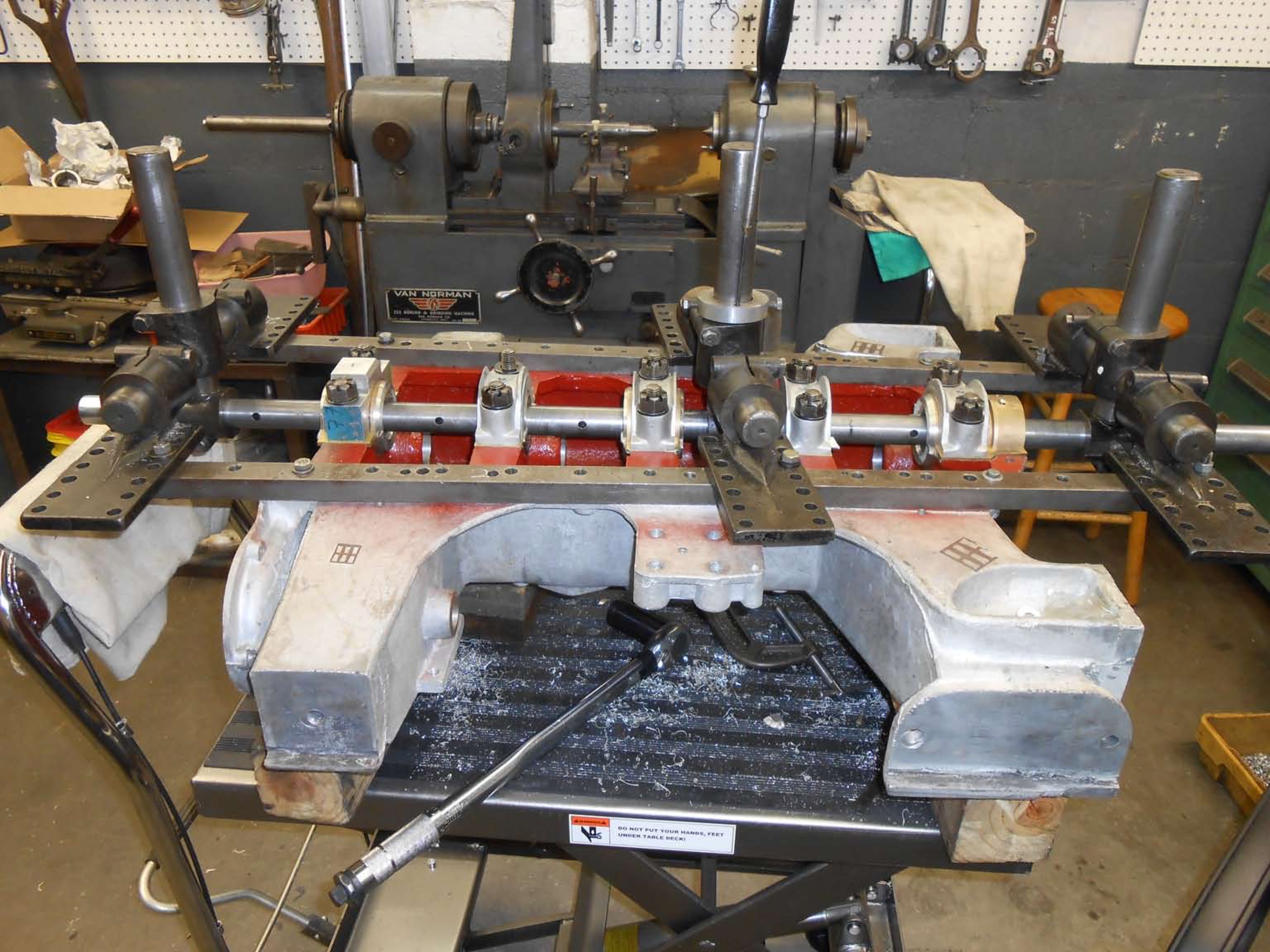

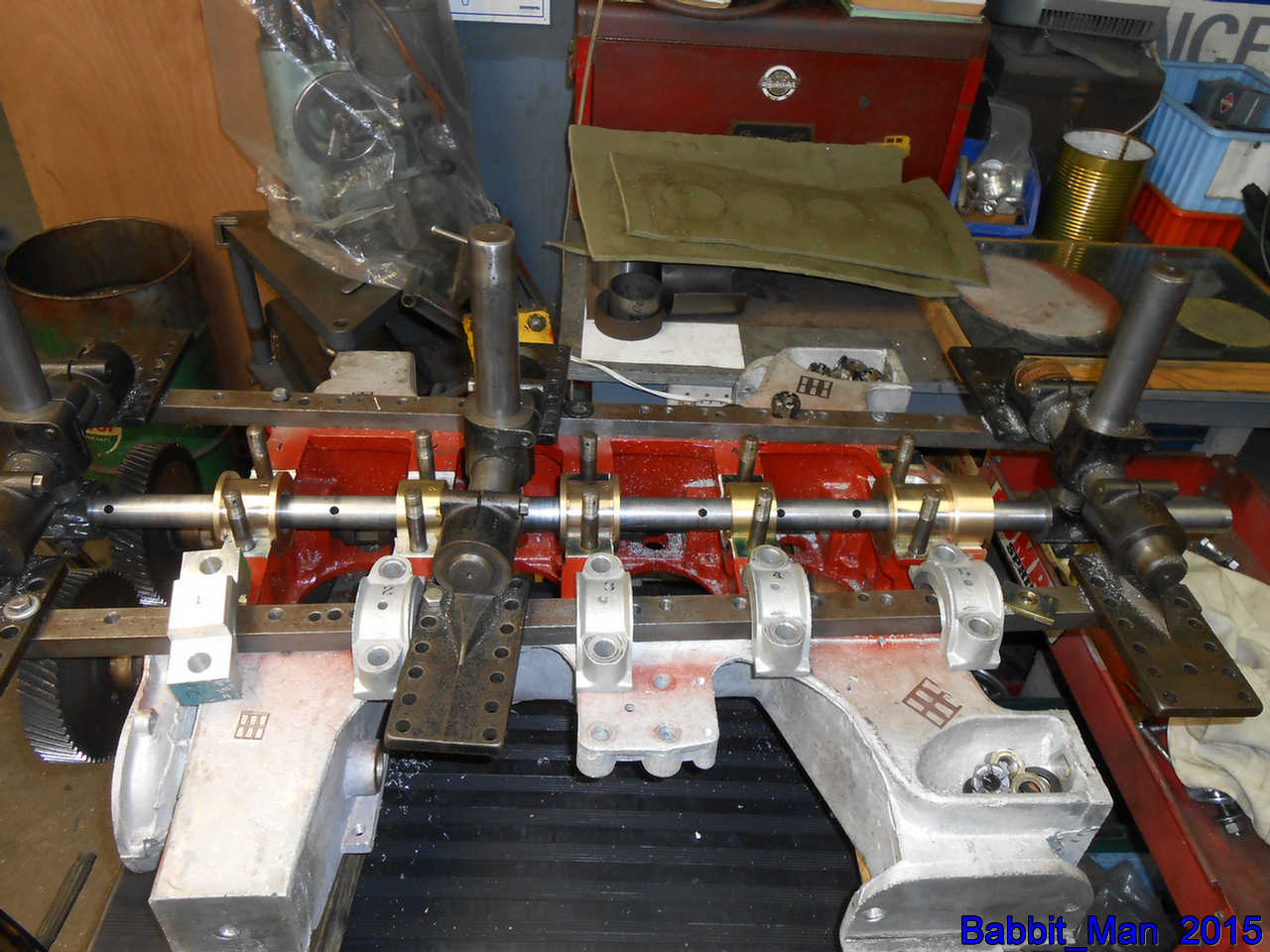

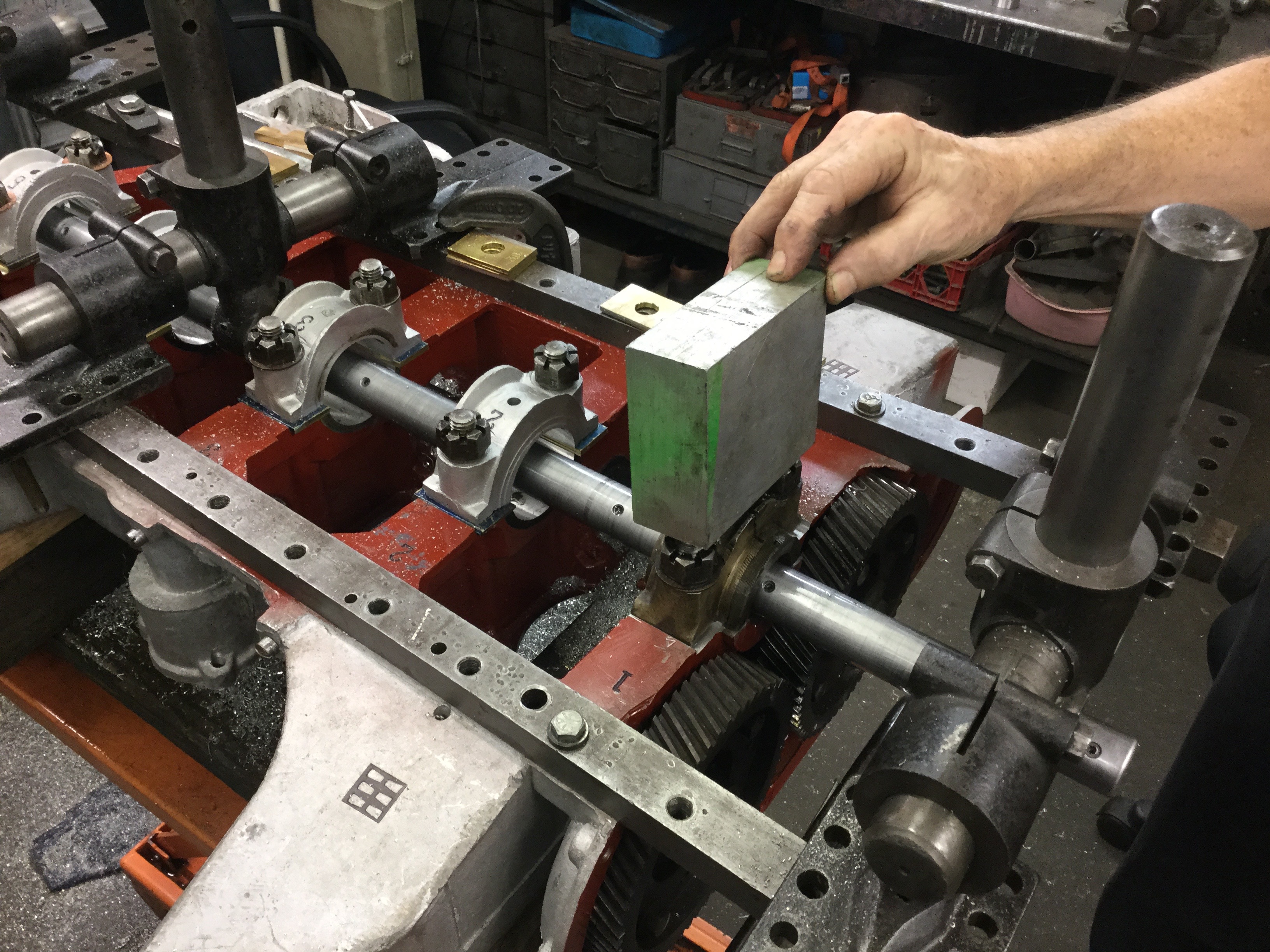

  • Machine work on engine Machine work on engine Set up for machining.
  • Machine work on engine Machine work on engine Set up for machining.
  • Machine work on engine Machine work on engine Set up for machining.
  • Machine work on engine Machine work on engine Set up for machining.
  • Machine work on engine Machine work on engine Set up for machining.
